FS: Thread adapter - mainly for gauges
When you hook up most pressure gauges you'll get a NPT (national pipe thread) sending unit that doesn't work in your BSPT (British Standard Pipe Thread) hole in your engine block.

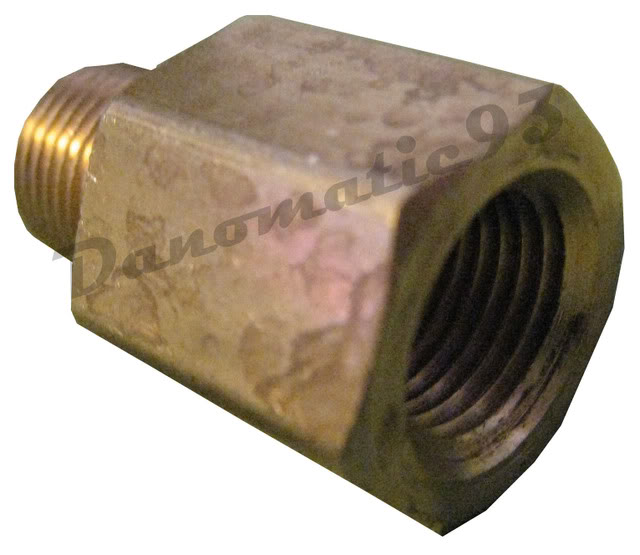

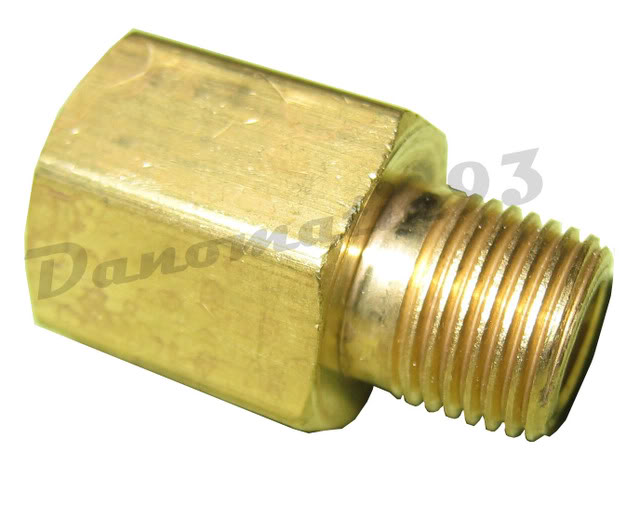

Here's an adapter that is 1/8" male BSPT (to go into the block) to 1/8" female NPT (the sending unit threads into). Length in just under and inch.
Made by Parker Hannifin: part# 1/8F3HG-B
I have a bunch, but when they're gone they're gone.
Price: 10 bucks SHIPPED (to the lower 48)
Contact: dafedel@uwm.edu (also my paypal ID)
Location: Milwaukee, WI
Hook up some gauges to your foreign car.
Fitting, Metric Adapter, Oil Pressure

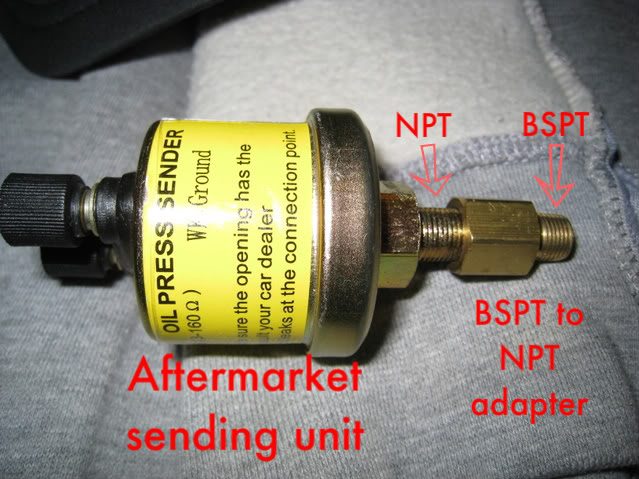

A couple of ways to hook a sending unit up:

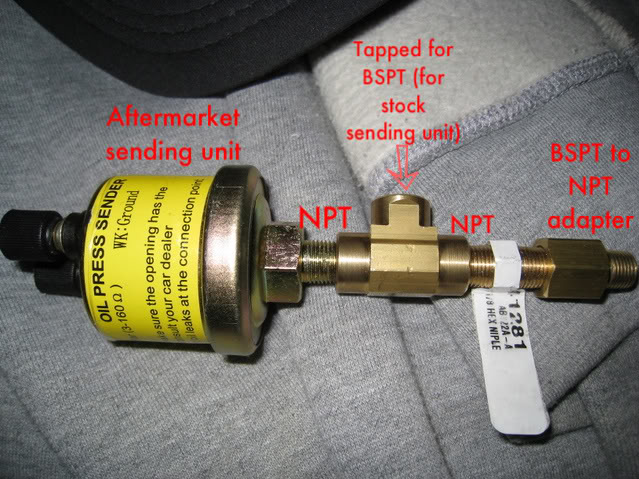

EDIT**If you want to retain your oil warning light too, you can do this. But SUPPORT IT WELL!!! If you hook this up and don't, it could possibly break off, not good.
Here's an adapter that is 1/8" male BSPT (to go into the block) to 1/8" female NPT (the sending unit threads into). Length in just under and inch.
Made by Parker Hannifin: part# 1/8F3HG-B
I have a bunch, but when they're gone they're gone.
Price: 10 bucks SHIPPED (to the lower 48)
Contact: dafedel@uwm.edu (also my paypal ID)
Location: Milwaukee, WI
Hook up some gauges to your foreign car.
Fitting, Metric Adapter, Oil Pressure
A couple of ways to hook a sending unit up:
EDIT**If you want to retain your oil warning light too, you can do this. But SUPPORT IT WELL!!! If you hook this up and don't, it could possibly break off, not good.
