ok guys, ive been doing a crap load of work to my newest vehicle, its a 89 jeep wrangler with a carb'd 4.2 and automatic. so i have tons of pics and thought you would like to see my progress.




if you guys remember i had a 24ft pontoon boat, well i traded it for the jep wrangler cause its going to be getting cold soon and i needed another 4x4 jeep since i totaled my big white grand cherokee.


Name:  100_0527.jpg
Views: 200
Size:  198.1 KB


Name:  283986_230146567028792_100001003520973_638869_2864687_n.jpg
Views: 46
Size:  63.4 KB

after owning it for a couple of days i starting noticing things that needed fixed

Name:  102_0081.jpg
Views: 38
Size:  108.9 KB

Name:  102_0082.jpg
Views: 37
Size:  139.3 KB

Name:  102_0083.jpg
Views: 43
Size:  117.8 KB

also grabbed some boomerang shackles and installed them

old stock ones
Name:  102_0084.jpg
Views: 41
Size:  122.5 KB

new ones
Name:  102_0086.jpg
Views: 44
Size:  115.9 KB

and while installing them i dropped the gas tank and fixed the fuel sending unit
Name:  102_0085.jpg
Views: 40
Size:  230.7 KB

then i took the crappy plastic valve cover off cause it leaked like crazy and installed an aluminum valve cover
Name:  102_0087.jpg
Views: 38
Size:  125.6 KB

i also had a broken rear drive shaft and when it broke it also broke the tail cone on the tranfer case, but i had extra parts laying around and it was a quick fix

Name:  102_0088.jpg
Views: 41
Size:  104.6 KB

next i swapped the rims and did it all by hand

Name:  102_0276.jpg
Views: 39
Size:  170.7 KB

Name:  102_0278.jpg
Views: 84
Size:  135.8 KB

while doing that i noticed the rear brakes were broke, so i fixed that also

Name:  102_0280.jpg
Views: 44
Size:  76.7 KB

then i wired up the KC lights

Name:  102_0290.jpg
Views: 43
Size:  105.4 KB

  #2
Old 10-09-2011, 04:18 PM
94civichatchback's Avatar
Chubby Chaser
Thread Starter
Join Date: Dec 2007
Location: whitwell,Tn 37397
Posts: 4,677
Default

next i installed a radio and amplifier

Name:  102_0292.jpg
Views: 42
Size:  31.0 KB

then i did a trans fluid and filter change

Name:  102_0293.jpg
Views: 43
Size:  104.6 KB
Name:  102_0294.jpg
Views: 44
Size:  124.4 KB


then i pulled the carb off and rebuilt it

Name:  102_0297.jpg
Views: 45
Size:  80.0 KB
Name:  102_0298.jpg
Views: 28
Size:  100.3 KB

then took a break workin on it and just trail rode the hell out of it. i have tons of pics and videos

Name:  000_0004-2.jpg
Views: 41
Size:  162.6 KB

Name:  000_0005-2.jpg
Views: 165
Size:  153.2 KB

then recently i started have a grind sound. it sounded like a broken flex plate (its comin with automatic jeeps)

so i decided it would be easier to pull the engine then to drop trans, transfer case and drive shafts

Name:  102_0357.jpg
Views: 66
Size:  185.4 KB

you can see it was grinding
Name:  102_0361.jpg
Views: 53
Size:  219.9 KB

the flex plate was in perfect shape it wasnt broke
Name:  102_0362.jpg
Views: 77
Size:  80.1 KB

i eventually found out that the crank is worn and moving bad and forth causing the flex plate to hit the housing

Name:  102_0363.jpg
Views: 97
Size:  137.9 KB

  #3
Old 10-09-2011, 04:24 PM
94civichatchback's Avatar
Chubby Chaser
Thread Starter
Join Date: Dec 2007
Location: whitwell,Tn 37397
Posts: 4,677
Default

recently i came one hell of a deal that i couldnt pass up. i grabbed a 91 wrangler that has a 4.0 MPFI and its a 5 speed. For only $500

Name:  IMG952011091195161830.jpg
Views: 46
Size:  122.2 KB

so as of right now im converting my carb'd , automatic jeep to a MPFI 5 speed jeep

Name:  102_0390.jpg
Views: 40
Size:  150.5 KB

im pulling everything out of the parts jeep and installing it into my jeep

Name:  102_0393.jpg
Views: 38
Size:  187.4 KB

Name:  102_0403.jpg
Views: 93
Size:  146.4 KB

all my old auto stuff and carb'd wiring harness

Name:  102_0397.jpg
Views: 40
Size:  155.9 KB

and with my Mechanics in Training i got a few others things done

My son swapped over the side steps onto my jeep

Name:  102_0392.jpg
Views: 43
Size:  137.9 KB
Name:  102_0394.jpg
Views: 39
Size:  73.0 KB
Name:  102_0402.jpg
Views: 42
Size:  107.4 KB


and then they removed the auto shifter stuff and installed the 5 speed stuff

Name:  102_0398.jpg
Views: 94
Size:  133.3 KB

Name:  102_0399.jpg
Views: 105
Size:  113.3 KB

Name:  102_0400.jpg
Views: 40
Size:  162.7 KB

  #4
Old 10-09-2011, 09:44 PM
MBrent's Avatar
July 2010 ROTM
Join Date: Aug 2009
Location: Susan Moore, AL
Posts: 810
Default

Sweet project man. The terrain up there looks a lot like the terrain down here. Good luck with the swap. That little girl looks a lot like her dad!

  #5
Old 10-10-2011, 06:43 AM
cvcrcr99's Avatar
Moderator
Join Date: Aug 2007
Location: DUB Caeser
Posts: 7,176
Default

Cute kids Mitch.

Holy **** you have been busy. You're lucky to have support from your family in order to be doing this. Although, I am sure you are bringing in money from it all so it should be all good. Hell, I buy a motor, work on it for a week and it created doubt and ultimately ruined the relationship I had with my g/f. /rant about my life.

Keep up the good work dude.

  #6
Old 10-10-2011, 05:16 PM
94civichatchback's Avatar
Chubby Chaser
Thread Starter
Join Date: Dec 2007
Location: whitwell,Tn 37397
Posts: 4,677
Default

thanks , wife dont give a damn what i do lol.


today i got the engine pulled out of the donor jeep and its bolted up in my jeep, it started raining so i called it a night.

Name:  102_0407.jpg
Views: 38
Size:  125.4 KB

Name:  102_0409.jpg
Views: 38
Size:  120.5 KB

Name:  102_0410.jpg
Views: 105
Size:  123.4 KB

  #7
Old 10-12-2011, 05:06 PM
94civichatchback's Avatar
Chubby Chaser
Thread Starter
Join Date: Dec 2007
Location: whitwell,Tn 37397
Posts: 4,677
Default

today i got everything bolted up , bought a new transmission mount and installed it, all i got left to do is wiring and installing the brake/clutch pedals, then i gotta get my rear driveshaft shortened 1in and buy a fuel pump and power steering pump. then she should be ready for the trails again. i cant wait

  #8
Old 10-12-2011, 06:02 PM
Shandles's Avatar
HCF Member
Join Date: Sep 2005
Location: Columbia, Missouri
Posts: 1,431
Default

great project man! Makes me wish I still had my old 85 Bronco trail rig. Thing was a blast to drive off road, it just ate sooooo much friggin gas using it as my daily...

I've always wanted to pick up an old Jeep to work on, I just don't have the time/space/money these days.

  #9
Old 10-13-2011, 03:53 AM
Junior Member
Join Date: Oct 2011
Posts: 1
Default

give it a wash,

these wranglers are so solid they can take alot of damage and carry on!


Last edited by WellFedHobo; 10-13-2011 at 04:37 AM.
  #10
Old 10-15-2011, 11:58 PM
94civichatchback's Avatar
Chubby Chaser
Thread Starter
Join Date: Dec 2007
Location: whitwell,Tn 37397
Posts: 4,677
Default

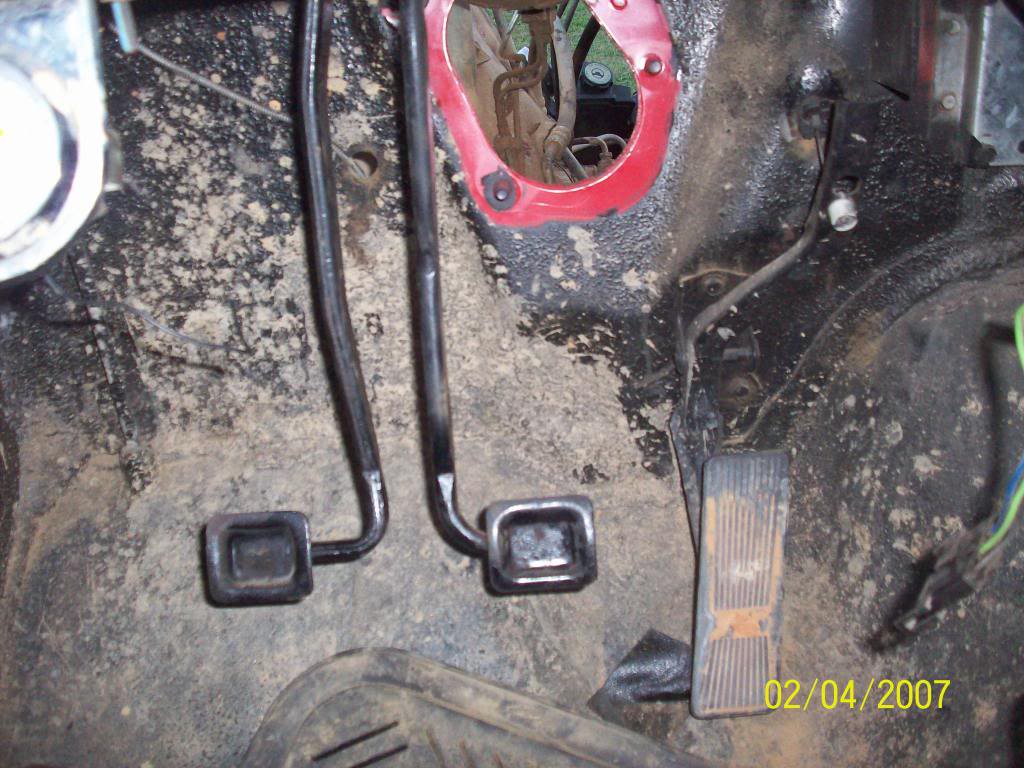

im starting to see the finish line lol. for the past 2 days i have been rewiring everything and today i finally got the pedals swapped in and the clutch cyl installed.

Name:  102_0419.jpg
Views: 38
Size:  134.5 KB

Name:  102_0420.jpg
Views: 64
Size:  113.8 KB

Name:  102_0421.jpg
Views: 102
Size:  203.1 KB

Name:  102_0422.jpg
Views: 99
Size:  127.0 KB

Name:  102_0423.jpg
Views: 39
Size:  156.0 KB
