Default Acura Integra Gauge Cluster Installation (92-95 Civic)

This is a detailed DIY for installing a 94-01 Integra Cluster into a 92-95 Civic. You are more that welcome to use this as a guideline as there are many ways of displaying the cluster.

Tools/Items Used:
Knife (Small Flat Head Driver)
Masking Tape
Heat Gun
Dremel (Cutting and Sanding Bits)
Ove Glove
Safety Glasses
94-01 Integra Cluster with Pigtails (I used a 94-97 Cluster)
92-95 Civic Cluster Bezel
Acrylic (Plexiglas)
Epoxy
Flat Black Spray Paint
Sandpaper
Small piece of a paperclip
EG trip odometer stick rubber end
1” nylon sleeve with O.D. ” and 6-32 thread size inside
2” 6-32 threaded rod

Civic Cluster Bezel Preparation:
Let’s start by getting the Civic Cluster Bezel ready. I wanted the have a clean stock feel with these gauges, so I wanted to use a stock bezel (well, really just the frame of it.).

1. Remove the Bezel from the donor Cluster. 5 tabs, use ‘em.
Name:  IMG_0658.jpg
Views: 1767
Size:  77.8 KB

2. With a knife, shove it in between the Bezel and the plastic cover. Work your way around the cover, carefully prying up the cover as you go.
Name:  IMG_0687.jpg
Views: 1368
Size:  58.6 KB

Name:  IMG_0688.jpg
Views: 1349
Size:  86.4 KB

3. Mask off the inside of the Bezel with tape to protect it from scratches later.
Name:  IMG_0689.jpg
Views: 1296
Size:  69.9 KB

4. Get out the Dremel and cutting disc and cut it out. Leave extra material to sand down so that you don’t scar the Bezel.
Name:  1020081619-00.jpg
Views: 1339
Size:  55.3 KB

Name:  1020081641-00.jpg
Views: 1325
Size:  42.5 KB

WEAR SAFTEY GLASSES!!
Name:  1020081625-00.jpg
Views: 1325
Size:  52.7 KB

Name:  1020081624-00.jpg
Views: 1358
Size:  52.1 KB

You can see how much I left to sand here:
Name:  1020081630-00.jpg
Views: 1333
Size:  50.6 KB

5. Again with the Dremel, but now with the sanding tubes. Sand it flush.
Name:  1020081640-00.jpg
Views: 1315
Size:  30.4 KB

Note: I also hand sanded with 180, 360 and 600 grit sand paper after using the dremel.

Name:  IMG_0692.jpg
Views: 1353
Size:  82.9 KB

6. Trim three tabs of the Bezel.

Before:
Name:  IMG_0693.jpg
Views: 1321
Size:  79.5 KB

After:
Name:  IMG_0697.jpg
Views: 1336
Size:  77.7 KB

7. Lightly scuff the surface with fine grit sandpaper (600+), clean with alcohol and let it dry, then paint flat black.



Integra Cluster Preparation:
Get out the Integra Cluster
Name:  IMG_0655.jpg
Views: 2496
Size:  48.9 KB

1. Remove the Bezel on the Integra. Tabs and 3 screws in the back!
Name:  IMG_0690.jpg
Views: 1329
Size:  77.5 KB

2. With the Bezel off, remove the clear cover and cut the Bezel with a Dremel.
Name:  IMG_0694.jpg
Views: 1328
Size:  77.3 KB

Note: the Bezel is on the cluster just for the picture; do not cut with the Bezel on the cluster. You will screw up!
Name:  IMG_0698.jpg
Views: 1371
Size:  82.6 KB

Note: I cut down some fins on each side.
Name:  IMG_0700.jpg
Views: 1315
Size:  54.6 KB

Note: I trimmed this lower part of the Bezel to allow the Civic Bezel to sit on this Bezel more easily.
Name:  IMG_0699.jpg
Views: 1318
Size:  60.4 KB

To fit the cluster into the car I had to cut down the cluster’s sides a little. Both sides were cut the same.
Name:  IMG_0735.jpg
Views: 1341
Size:  54.0 KB

3. Test fit, Test fit, Test fit!!!
Name:  IMG_0702.jpg
Views: 1439
Size:  77.1 KB

Stop and admire a side by side.
Name:  IMG_0701.jpg
Views: 1369
Size:  77.5 KB

4. Add extra material on the upper corners of the bezel where there is a gap between the integra bezel and civic bezel.
Name:  IMG_0721.jpg
Views: 1325
Size:  86.8 KB

Name:  IMG_0720.jpg
Views: 1367
Size:  85.7 KB

Note: I used extra Plexiglas and epoxy then sanded it flat.
Name:  IMG_0716.jpg
Views: 1449
Size:  60.0 KB

Name:  IMG_0719.jpg
Views: 1298
Size:  48.5 KB

5. Lightly scuff the surface with fine grit sandpaper (600+), clean with alcohol and let it dry, then paint flat black.

It should look something like this:
Name:  IMG_0723.jpg
Views: 1339
Size:  35.4 KB

6. Extending the trip odometer stick:
Random parts I used:
-a small piece of a paperclip
-EG trip odometer stick rubber end
-1” nylon sleeve with O.D. ” and 6-32 thread size inside
-2” 6-32 threaded rod
Name:  IMG_0725.jpg
Views: 1313
Size:  74.2 KB

Name:  IMG_0724.jpg
Views: 1314
Size:  73.1 KB

To do it:
a. Drill a small hole in the Integra trip stick to receive half of the length of the paperclip piece you cut. This is used allow the extension something to hold onto.
Name:  tripstick.jpg
Views: 1264
Size:  5.8 KB
b. Epoxy the paperclip piece in place.
c. Push the EG trip end onto the threaded rod.
d. Cut down the threaded rod a little. Be sure the nylon sleeve can still thread on.
Name:  TRIPstick2.jpg
Views: 1330
Size:  12.8 KB
e. Now, you can epoxy the extension on OR build up the diameter of the paperclip with epoxy so that the extension slides on snugly without being permanently attached.

Custom Cluster Cover Preparation:
We want our final product to have a hole for the trip odometer reset stick to be in the right spot. Yes, you can use the stock cover BUT, you’ll have a hole in the wrong spot. So, let’s make our own cover!
Get some acrylic (Plexiglas) from your local hardware store.
Name:  1020081619-01.jpg
Views: 1294
Size:  38.2 KB

1. Cut the Plexiglas to rough length. Notice that it’s flat, for now.
Name:  1020081627-00.jpg
Views: 1298
Size:  33.7 KB

2. Pull out the Ove Glove and Heat Gun and begin to evenly heat the Plexiglas.
Name:  1020081933-00.jpg
Views: 1314
Size:  46.9 KB

3. While heating the Plexiglas apply pressure by bending it slowly. Do this until it has the same curvature as the stock cover.
Name:  1020081932-00.jpg
Views: 1310
Size:  42.6 KB

4. Cut the Plexiglas to rough shape.

5. Cut the whole for your extended trip odometer stick.

6. Remove the protective plastic on both side of the Plexiglas. TIP: if it doesn’t come off easily, soak the cover in water for 5-10 minutes.

7. Epoxy the Plexiglas cover on and trim it down if you need.

Getting the bezels together:
1. Epoxy them where you see fit.


Wiring:
Wiring charts found on Honda-Tech:
http://honda-tech.com/zerothread?id=1053318


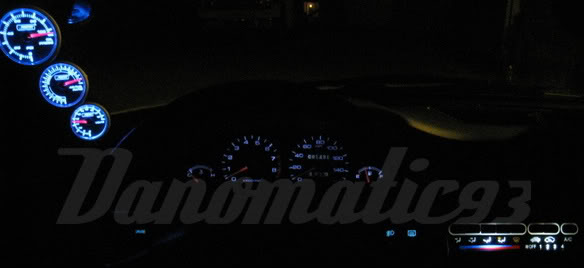

The Final Product:
Name:  IMG_0740.jpg
Views: 2395
Size:  42.3 KB

Name:  IMG_0736.jpg
Views: 1322
Size:  42.8 KB

Name:  IMG_0761.jpg
Views: 2719
Size:  64.2 KB


Last edited by WellFedHobo; 01-30-2010 at 12:36 PM.
  #2
Old 10-30-2008, 05:58 AM
HCF Member
Join Date: Jul 2006
Location:
Posts: 1,041
Default

I <3 DANO! Im going to do this!!!!!

  #3
Old 10-30-2008, 04:55 PM
HCF Member
Join Date: Oct 2008
Posts: 376
Default

Would that work for a 97 civic? Or more work is needed?

  #4
Old 10-30-2008, 10:08 PM
danomatic93's Avatar
June 2010 ROTM
Thread Starter
Join Date: Oct 2006
Location: Milwaukee, WI
Posts: 3,284
Default

For any EK (96-00) it would be a hell of a lot easier. You can re-pin the plugs (pigtails), the cluster fits in as is with minor modification. I don't know the specifics though, just google it.

  #5
Old 12-02-2008, 03:41 PM
danomatic93's Avatar
June 2010 ROTM
Thread Starter
Join Date: Oct 2006
Location: Milwaukee, WI
Posts: 3,284
  #6
Old 12-02-2008, 05:14 PM
HCF Member
Join Date: Jul 2007
Location: BX, NYC
Posts: 743
Default

Nice mod and cool vid. Was that done with still pics or with a vid camera?

  #7
Old 12-02-2008, 06:30 PM
danomatic93's Avatar
June 2010 ROTM
Thread Starter
Join Date: Oct 2006
Location: Milwaukee, WI
Posts: 3,284
Default

My digital camera doubles as a video camera and has the feature of time lapse. It's actually a big reason I bought it.
