Ok so that diagramforty posted and the link that sovxietday posted works for both obd1 and obd2 cars? I think Ive got it nowand Im going to try to fix it some time this week. Thanks for the help guys.



Yup, works for OBD1 and 2.

Forty that is picture is a pretty rainbow. [8D]

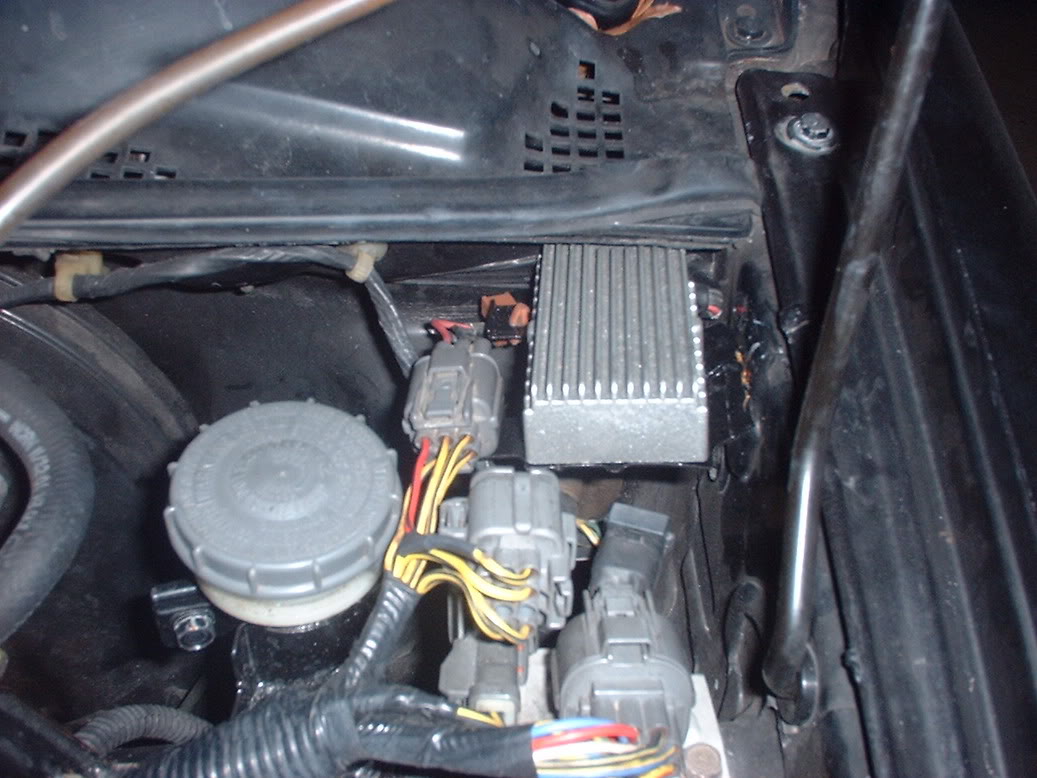

i did the resistor box install on his car. i pretty much did what you said except rather than cutting the plugs off i swapped the pins into the resitor box plug so it was more stock looking. i pulled all of the yellow/black stripe wires out of the plug on the car and put them into the plug for the resistor box in place of the red/black stripe wires. then the one yellow/black stripe wire for the resistor box got soldered into a +12v source in that same cluster. as far as i can tell the only thing that may be wrong with my wiring is i didnt get a good +12v source. here is a pic of my car. i did his exaclty as i did mine just in a different location. mine has been fine for over a year now
(sorry for the size, but it shows detail)



yeah, you can do it that way, but IMO its easier to just follow my diagram.



yea forty was easy for me but we'll see how great it is when i try to start her up .....j/p man great diagram

forty is the turbo oracle



thanks for this info im about to install dsm 450's as well and this was real helpful. Cheers!



worrrrd

Just remember, from dizzy to cam gear, the wires for injectors are YELLOW, BLUE, RED, BROWN



i just like the stock look and if you ever need to change the box its just a plug



I completely understand. Although, check out how I did Tyler's setup, looks pretty stock and I didnt have to waste time testing the plug, etc..



Tyler doesnt have any good pics of his resistor/injector wiring. Tell him to take some pics and post them up cuz he has the same motor as me. Hopefully we can figure out why my freaking car wont run and fix the problem this weekend. Im going to lose my mind if I have to look at the thing just sitting in the driveway without being able to drive itfor another week! Pics and vids will be posted when this beast hits the road!
