93 Civic EX - Not Starting
Did you jump the pedal switch? The relays are fairly relaible, the problem is usually the pedal switch. Remember it's the top switch. Also test for 12 volts on the blue-black wire at the pedal switch when the key is turned to start. When the switch closes it grounds this wire and pulls in the relay.

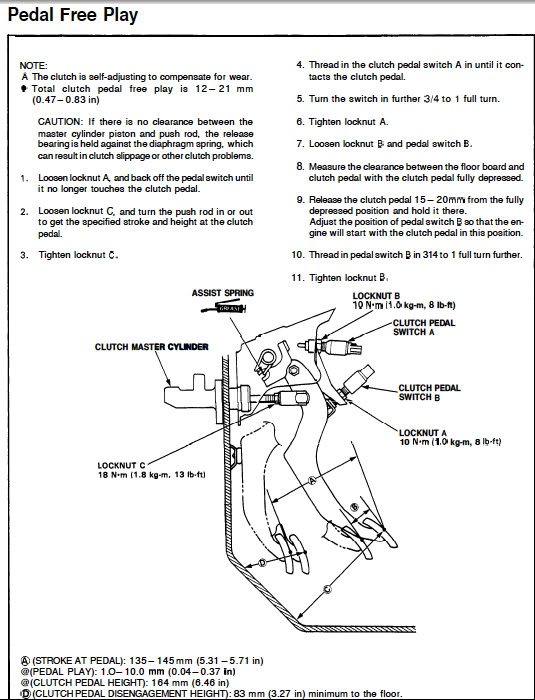

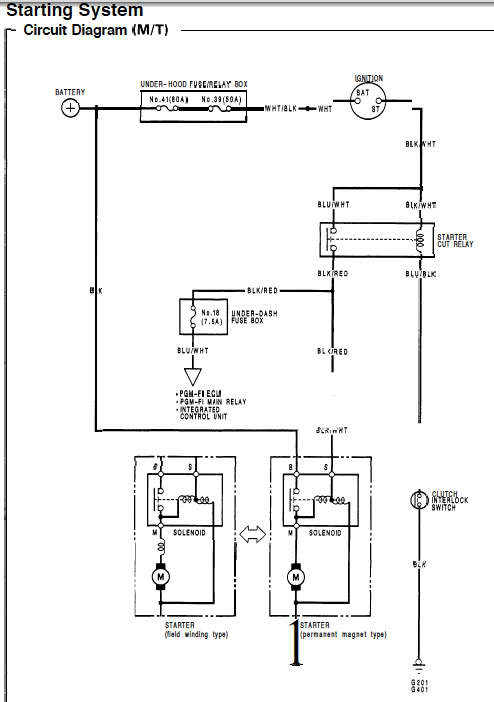

The diagrams below may help:

If the car has the factory alarm system, it can disable the starter.
Did you jump the pedal switch? The relays are fairly reliable, the problem is usually the pedal switch. Remember it's the top switch. Also test for 12 volts on the blue-black wire at the pedal switch when the key is turned to start. When the switch closes it grounds this wire and pulls in the relay.
Did you jump the pedal switch? The relays are fairly reliable, the problem is usually the pedal switch. Remember it's the top switch. Also test for 12 volts on the blue-black wire at the pedal switch when the key is turned to start. When the switch closes it grounds this wire and pulls in the relay.
I didn't actually check for voltages on the wires because it was all I could do to get it unplugged and removed. I don't think I can actually reach a probe up there.
Thanks for all the input so far.
*crosses fingers for more ideas or ways to check the cut relay*
The clutch switch circuit must function properly to activate the cut relay that provides power to the starter. Until you prove that the clutch switch circuit is working, your sole focus on the cut relay could be misdirected. Given you currently inability to access and test the cut relay, it would be most productive to test whether the clutch switch is receiving 12V power from the BLU/BLK wire and, if so, whether the BLK wire is able to ground (has continuity) this power source.
Disconnect the clutch switch and attach extension wires to the BLU/BLK and BLK wires for testing with a multimeter. At the same time, place a jumper wire across the 2P switch connector to check whether the starter now fires. If so, the relay is fine.
Disconnect the clutch switch and attach extension wires to the BLU/BLK and BLK wires for testing with a multimeter. At the same time, place a jumper wire across the 2P switch connector to check whether the starter now fires. If so, the relay is fine.
Last edited by RonJ; Sep 7, 2008 at 06:41 AM.
Just put a jumper wire in the plug for the switch. Try to start. If it starts, the switch was not working. If it doesn't start, go from there with further tests.
Switch may work when you test it out of the car but that doesn't prove the pedal was pushing the button sufficiently in the car.
Switch may work when you test it out of the car but that doesn't prove the pedal was pushing the button sufficiently in the car.
